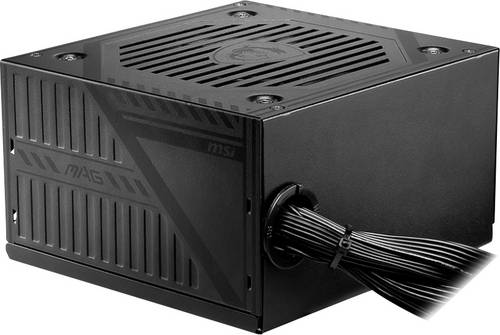

MSI MAG A550BNL power supply unit 550 W 24-pin ATX ATX Black

MSI MAG A550BNL power supply unit 550 W 24-pin ATX ATX Black

MSI

GBP 69.66 There is one offer for this product.

The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products. they were reborn as the symbol of sturdiness and durability.The MAG A550BNL’s distinctive design patterns symbolize unity and strength. It unites all the components by reliably and stably supplying power to the entire system. With the MAG A550BNL. any system has the power it needs to survive all challenges.80 PLUS BRONZEThe efficiency of your power supply directly influences your system’s performance and power consumption. The 80 PLUS certification promises lower energy consumption and qualified efficiency level.PROTECTION DESIGNProtection is designed to protect the unit mechanisms and provides comprehensive protection.TEMPERATURE ADAPTATIONEngineered for reliability. your system operates safely at peak performance even in high-temperature conditions. This rugged power supply ensures sustained operation regardless of your environment.120mm LOW NOISE FANThe 120mm fan reduces the noise generated while maintaining excellent heat dissipation.FLAT CABLE EQUIPMENTThe MAG A550BNL’s cables are flat and in black. The flat cables make cable management easier and less of headache! Thanks to the flat cables. the entire system can be more organized.

Compare offers

Specifications

Power

Total power
550 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power Factor Correction (PFC) type
Active
Efficiency
85%
Power protection features
Over current, Over power, Over voltage, Short circuit

Ports & interfaces

Motherboard power connector
24-pin ATX
Number of SATA power connectors
5
Peripheral (Molex) power connectors (4-pin)
2
EPS power connector (8-pin)
No
EPS power connector (4+4 pin)
Yes
PCI Express power connectors (6+2 pin)
2
ATX Power connector (24-pin)
Yes
ATX power connector (20+4 pin)
No
Floppy disk drive connector
Yes
Cabling type
Non-Modular

Performance

80 PLUS certification
80 PLUS Bronze
Supported motherboard form factors
ATX
Purpose
PC
Power supply unit (PSU) form factor
ATX
Bearing technology
Hydraulic

Design

Product colour
Black
Cooling type
Active
Fan diameter
12 cm
Number of fans
1 fan(s)
On/off switch
Yes

Weight & dimensions

Width
140 mm
Depth
150 mm
Height
86 mm
